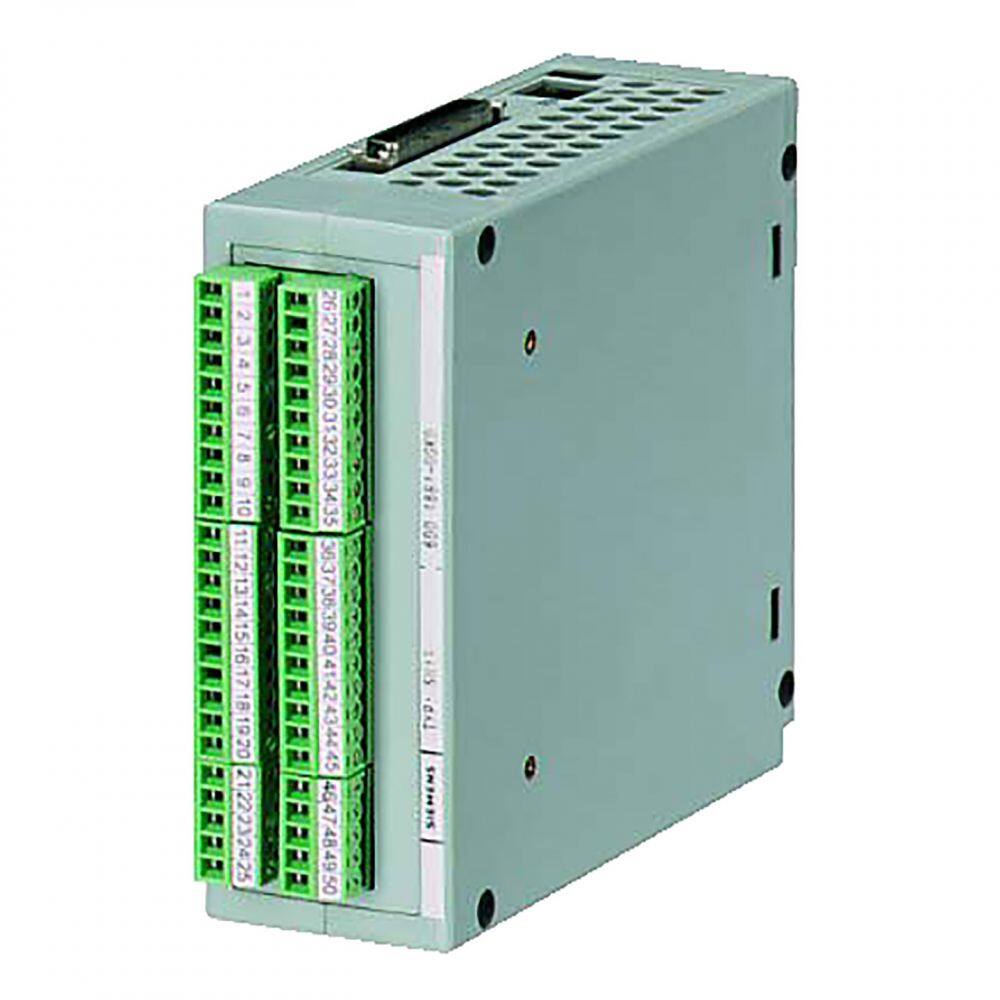

6DD1681-0GK0︱Siemens SIMATIC TDC︱converter SU13

6DD1681-0GK0︱Siemens SIMATIC TDC︱converter SU13︱6DD1681-0GK0︱Siemens SIMATIC TDC︱converter SU13

6DD1681-0GK0︱Siemens SIMATIC TDC︱converter SU13︱6DD1681-0GK0︱Siemens SIMATIC TDC︱converter SU13

1、Overview

SIMATIC TDC (Technology and Drives Control) is a digital control system which distinguishes itself by its high computational/arithmetic performance and the fact that it can process extensive,complex programs.An extensive library with about 300 pre-configured function blocks is available for fast engineering.

2、Benefits

  （1）SIMATlC TDC provides the highest degree of competence when it comes to motion control and closed-loop control technology.

  （2）SlMATlC TDC especially distinguishes itself as an effective,synchronizable multi-processing system

3、Application

SIMATlC TDC is used in plant construction, rolling mills and iron plants, as well as in energy distribution facilities.

4、Design

  （1）The system is of a modular design and can, depending on the particular application, be equipped with the necessary computational/arithmetic performance as well as digital, analog, incremental and absolute value encoder connections or communication interfaces.

  （2）All of the modules in the SlMATlC TDC subracks are connected through a high-performance 64-bit backplane bus. This allows data to be exchanged between all of the modules, almost in the processor clock cycle.

5、Function

  （1）Can be freely graphically configured

SIMATlC TDC is configured/engineered using the windows-based STEP 7 and CFC graphic SlMATlC engineering tools. The D7-SYS software package supplements the CFC engineering tool by the function blocks for SlMATlC TDC as well as the high-performance operating system.

  （2）Global Data Memory

For complex automation tasks, it may be necessary to exchange data between CPUs accommodated in several subracks. For this reason, a Global Data Memory(GDM) can be used as central memory for a coupling involving a maximum of 44 subracks.Data can be exchanged between all of the CPU modules in the system, across all of the networked subracks, through this memory. This means that over 800 CPU modules can be used in one system.

GDM comprises a subrack in which only GDM modules are inserted. This means that the subrack can be operated in a special fast mode.

  （3）Service and commissioning

The system is serviced and commissioned directly from the graphic engineering/configuring interface of STEP 7 and CFC. In this case, an MPl connection is used, to access all of the CPU modules in the subrack.

Alternatively, a CPU module can be addressed through a seria link (RS 232).In this case, access is restricted to the CPU module whose service interface is presently being used.

  （4）Programs from other processor modules

CFC charts for the CPU modules PM5, PM6, for the FM458-1 DP application module or for the T400 technological module can be extremely simply transferred to the CPU modules of the SlMATIC TDC automation system.

6、Integration

Drives and distributed peripherals (e.g. l/O) are connected to SIMATIC TDC using PROFlBUS DP interfaces with master and/or slave function.

Several SlMATlC stations as well as third-party systems and host computers can be connected using a TCP/lP interface for up to 100 Mbit/s. This interface can also be used to connect visualization components, e.g.WinCC

All of the visualization components of SlMATIC HMl, for example,WinCC or operator devices OP/TD are connected through MPI(Multi-Point Interface).

7、SIMATIC TDC Configuration Example

（1）Example 1:

a）6DD1607-0AA2，Application Module（FM458-1 DP），1 Pcs

b）6DD1607-0CA1，I/O extension Module（EXM438-1），1 Pcs

c）6DD1681-0GK0，Converter（SU13），2 Pcs

d）6DD1684-0GD0，Round cable（SC63），1 Pcs

（2）Example 2:

a）6DD1682-0CH3，Rack（UR6021），1 Pcs

b）6DD1660-0BF0，Communication module（CP52M0），1 Pcs

c）6DD1660-0BG0，Communication module（CP52I0），2 Pcs

d）6DD1682-0DA1，Slot cover（SR51），18 Pcs
