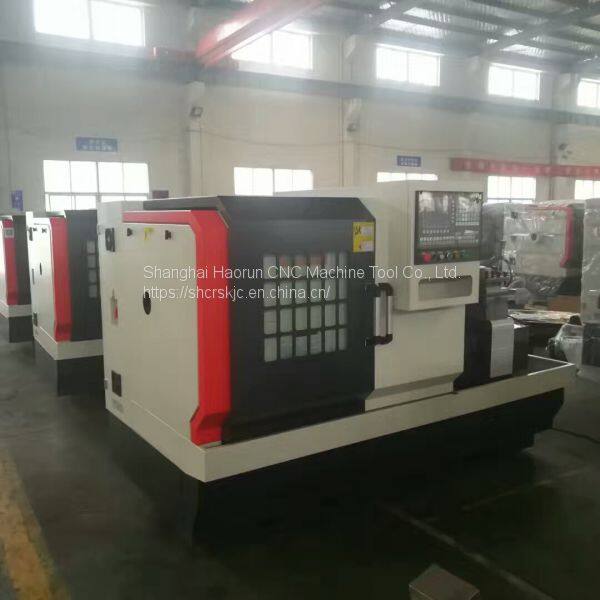

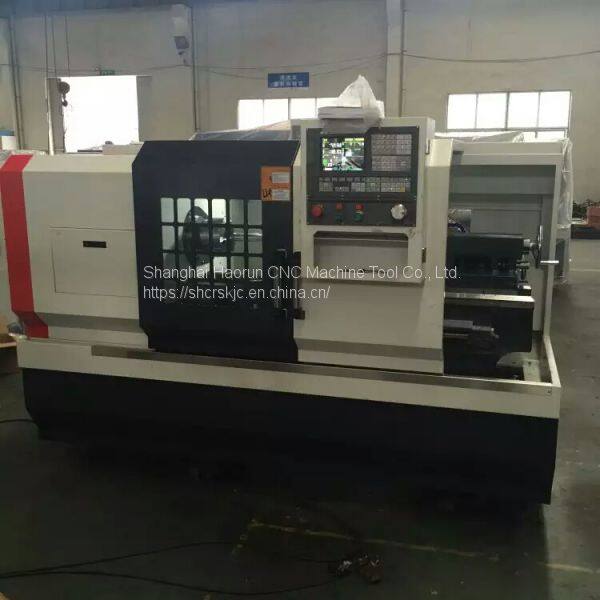

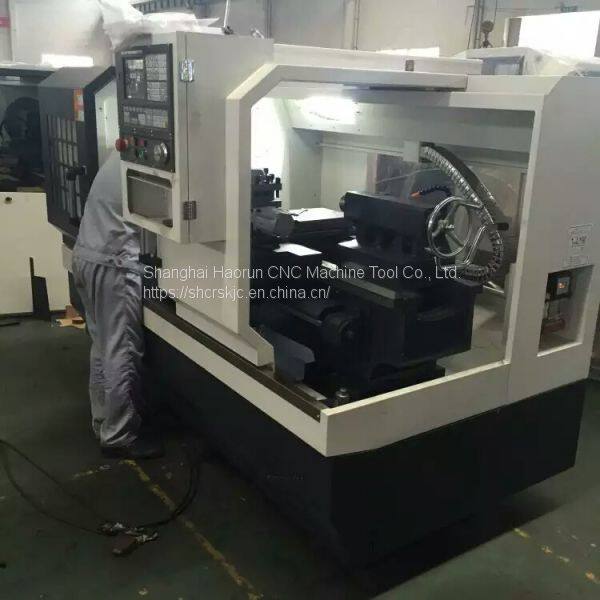

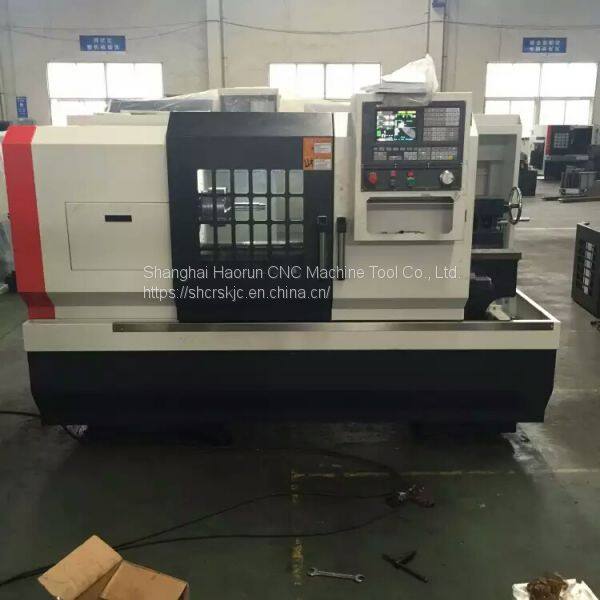

Ck6136 CNC Lathe|Horizontal CNC Lathe 6136

FOB Price

US$ 7725 - 7745 / Box

1 Box(Min. Order)

Port qingdao
Payment TermsT/T PayPal Other
Delivery Detail25 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Yurun	Place of Origin	China
Model Number	ck6136	Type	Horizontal
After-sales Service Provided	No overseas service provided	Weight	1500/2000
Dimension(LWH)	2500/3000X1500X1650	Voltage	220
Condition	New	Power(W)	5500
Automatic Grade	Semi-Automatic	CNC or Not	CNC
Max. Swing Diameter	360

Product Description

The main performance characteristics：

Widening high stability bed Two gear spindle speed,stepless in gearWider layor boardIntergrated automatic lubrication system

Application：

The machine is suitable to process all kinds of small and middle-sized shaft and plate workpiece,and could also turn various threads ,circle arc ,circle cone ,inside and outside surface of revolved body .This machine is widely used in sanitary ,value ,electrical appliance ,instrument ,automobile ,motor cycle ,bearing and so on.

Product main technical Specifications:

Specifications	Unit	CK6136
Max.swing over bed	mm	Ф360
Max.swing over cross slide	mm	Ф150
Distance between centers	mm	1000/1500
X/Z axis travel	mm	X:220 Z:1050/1600
Spindle transmission type		Mechanical 2 gear transmission ,in gear variable speed
Spindle speed steep		variable
Spindle speed	rpm	L:70～560，H:200～1600
Spindle nose		C6
Thru-hole dia.of spindle	mm	52
Spindle taper		MT6
Spindle motor	KW	5.5
Chuck size	mm	200
Ball screw dia.and pitch	mm	φ25X6/φ40X8
X/Z axis feed motor torque	N.m	X:6 Z:10
X/Z axis feed motor power	KW	X:1.5 Z:2.5
X/Z axis fast moving speed	mm/min	X:6000 Z:8000
X/Z axis Position accuracy	mm	0.02/0.025
X/Z axis repeatability	mm	0.01/0.015
Processing accuracy		IT6-IT7
Workpiece surface roughness		Ra1.6
Tailstock sleeve dia.	mm	65
Tailstock sleeve travel	mm	140
Tailstock sleeve taper	#	MT4
Guide form		Spindle mountain+flat rail
Total power capacity	KVA	10
Machine dimension(L×W×H）	mm	2500/3000X1500X1650
N.W.	kg	1500/2000
