Tire Shredder Machine Waste Rubber Shredding Machine

Name: Tire Shredder Machine Waste Rubber Shredding Machine
Brand: JINHUA
Availability: InStock

FOB Price

US$ 4,800 - 65,000 / Set

1 Set(Min. Order)

Port Qingdao Tianjin Shanghai
Payment TermsT/T L/C D/P D/A Money Gram

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Henan, China
Brand Name	JINHUA	Model Number	25-50/30-60/30-1000/30-1200, etc.
Use	Other, plastic, rubber, fiber, paper, wood, iron drum, industrial waste etc	Plastic Type	Other, All kinds of plastic
Shaft Design	Double	Power	Depends on models
Capacity	300kg-30000kg	Voltage	220V/380V/420V/460V
Power(W)	7.5-30kw*2	Dimension(LWH)	Variable
Weight	Variable	Certification	CE Certificate
After-sales Service Provided	Engineers available to service machinery overseas

Packaging Details

Standard export package wooden case

Product Description

Double shaft shredding machine and shearing cutting machine, is through the cut, tear and squeezing, reaching to decrease the size of raw material. The shredding machine is widely used for waste plastics, waste rubber, timber and other waste materials.
High production efficiency, mechanized feeding way, high automation degree, greatly reduces the labor intensity of workers, improve the working environment.

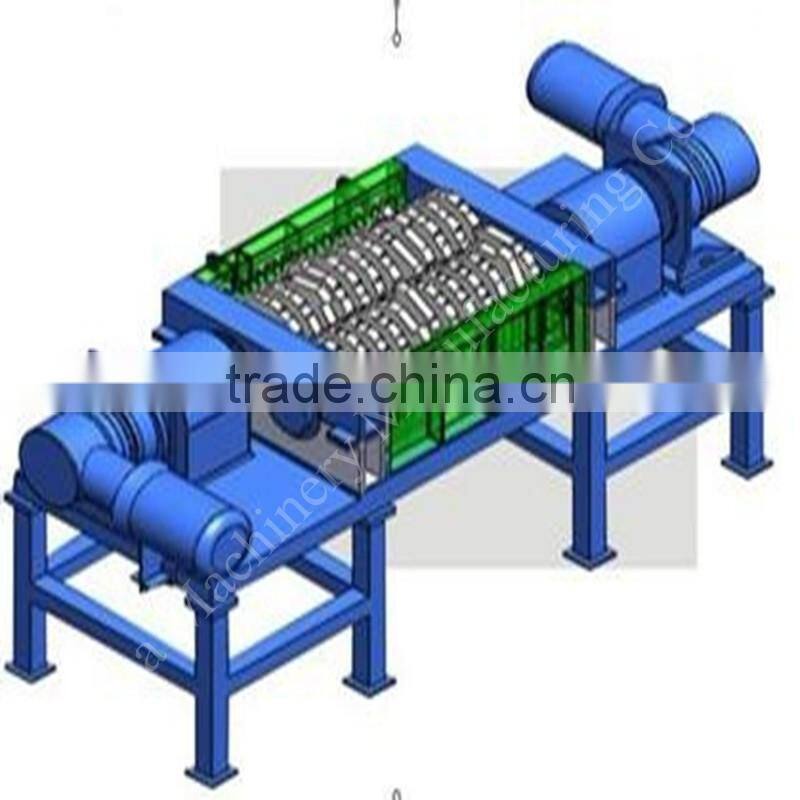

Main Structure

Spindle bearings on both sides of main shaft, through motor and reduction gear, rotary main shaft drives the spiral arrangement blades, make the blades on two shafts are meshing together, to tear, raw materialss, and repeating this

move to finished shredding. electronic control parts has a Reverse automatic control devices, when overfeeding or raw materila is too big, Machine will inverted running and stop, avoid damage of blades or motor.

To improve the service life and cutting ability, the main shaft through conditioning processing, and use high quality imported blades.

_{SPECIFICATIONS}
Series	Model	Power (kw)	Blade diameter (mm)	Shredding chamber (mm)	Blade thickness (mm)	Rotare speed (r/min)	Balde number (Pieces)
25	25-50	11	250	450*500	25	30	20
30	30-60	15	300	500*600	30	25	20
	30-1000	18.5*2	300	650*1050	30	20	34
	30-1200	22*2	300	650*1250	30	18	40
40	40-1200	30*2	400	850*1250	40	15	30
	40-1500	37*2	400	850*1550	50	15	30
	40-2000	45*2	400	850*2050	50	12	40
56	56-1200	55*2	500	1200*1200	100	9.8	12
	56-2000	75*2	500	1200*1200	100	9.8	20
	56-2000	75*2	500	1200*1200	100	9.8	20

Application

The application of the shredding machine generally includes:

1, Waste plastic bucket, plastic bottle, waste pipe, thin film, etc ;
2, Rubber, old tires, conveying belt, waste shoes, etx;
3, Old furniture, television, computer, wood, paper, cloth, leather, etc.

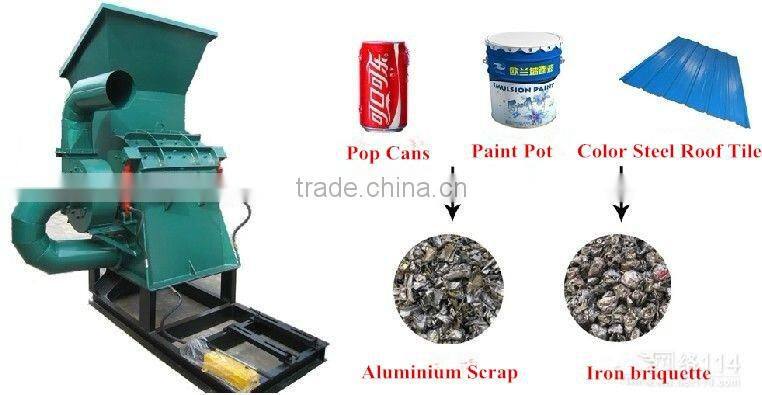

4, Steel, waste steel wire, color steel plate, paint buckets, cans, waste metal, etc.
5. Wood, waste wood pallet, plank, waste wood floor, wood packing case.
6, Waste cloth, fabric, carpet, medical waste, gauze, bandage etc.

Main parts

Name: Shredding Chamber

Shredding Chamber is the most important part the whole machine, the dimension is decide by different machine models, there are 450*500mm, 500*600mm, 650*1050mm, 850*1250mm, etc.

the dimension of shredding chamer has to be big enough for the maximum size of raw material. Or the raw material cannot be fitted in to shredder.

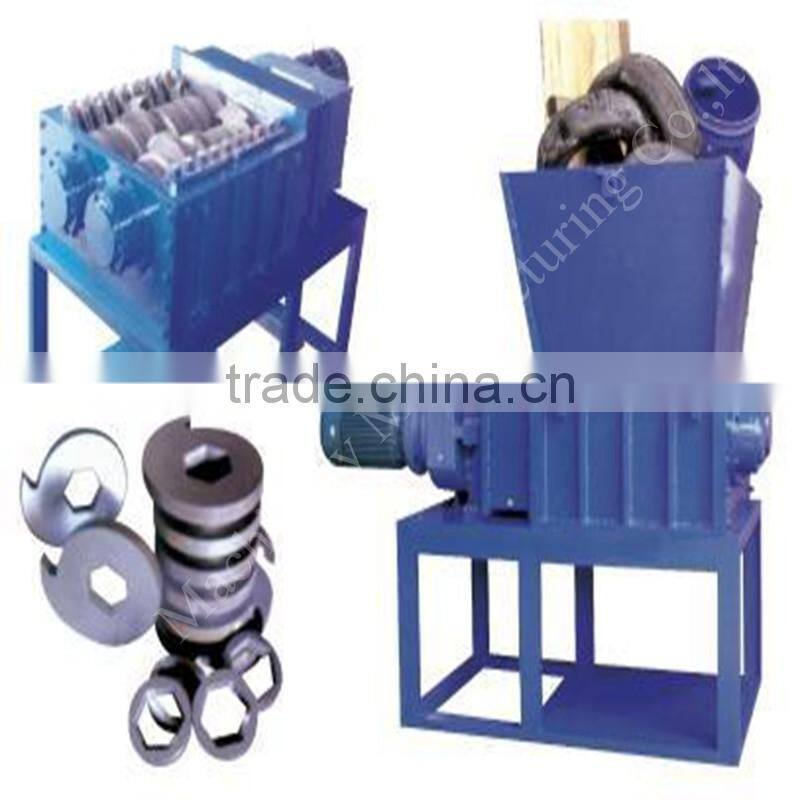

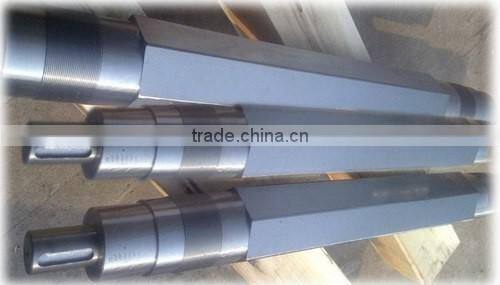

Name: Shaft

The hexagon design of shaft,

Different with the traditional round shaft,

the corner angle can prevent the slip of blades effectively during the shredding.

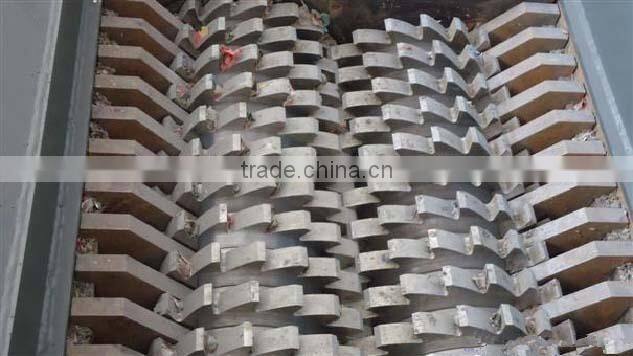

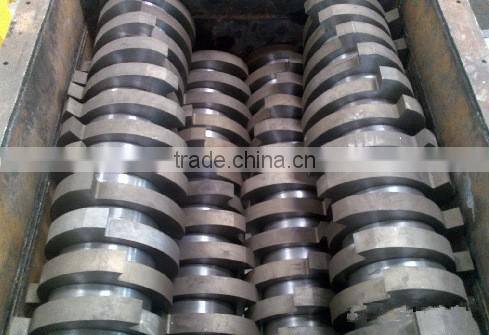

Name: Blades

The baldes cost the most in the whole machine, best quality alloy, usually are material 6CrW2Si, Cr12MoV, etc.
The thickness of balde are different: 15mm; 20mm; 30mm; 40mm; 50mm; 85mm; 100mm;
There are single claw, double claws, three claws; multi-claws.
The blade should according to the raw material and diacharging size.

Name: Motor & Reduction gears

There are 2 models for one shredder usually.

Motor and Reduction gears are all supplied Normal motor manufacturer, can promise the quality and safety

Different model install motors with different power, the power can be changed if client ask for, such as small model shredder can install big power motors anf reduction gears to raise efficiency.

Detail pictures

Advantages

Fully Automatic System-

Adopts automatic control circuit, it has 4 control functions: start, stop, reverse and overload automatic inversion.

Low speed & Large torque-

Hexagon shap shafts, can stongly stuck blades and prevent slipping

High efficiency-

The shear strength, even discharging granularity, Energy saving, environmental protection. wear small, long service life.

Separable type bearings technology design-

Can quickly and efficiently to replace bearings and blade.

Our Service

1.We can design machine according to your special requirements. Supply drawing and technical.

2. Supply assorted equipment, such as belt conveyor, screw conveyor, special hopper etc.

3. Professional delivery, machine will be with separate to couple parts, and use plastics foam and plastic wrap to protect, Single machine will ship with wooden case usually, production line usually delivery with container directly.

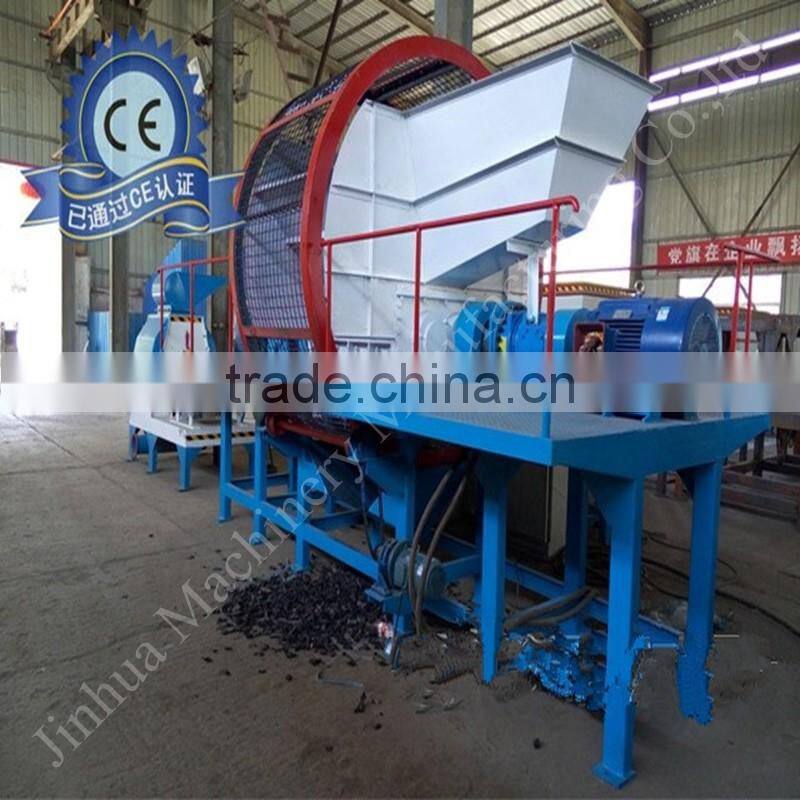

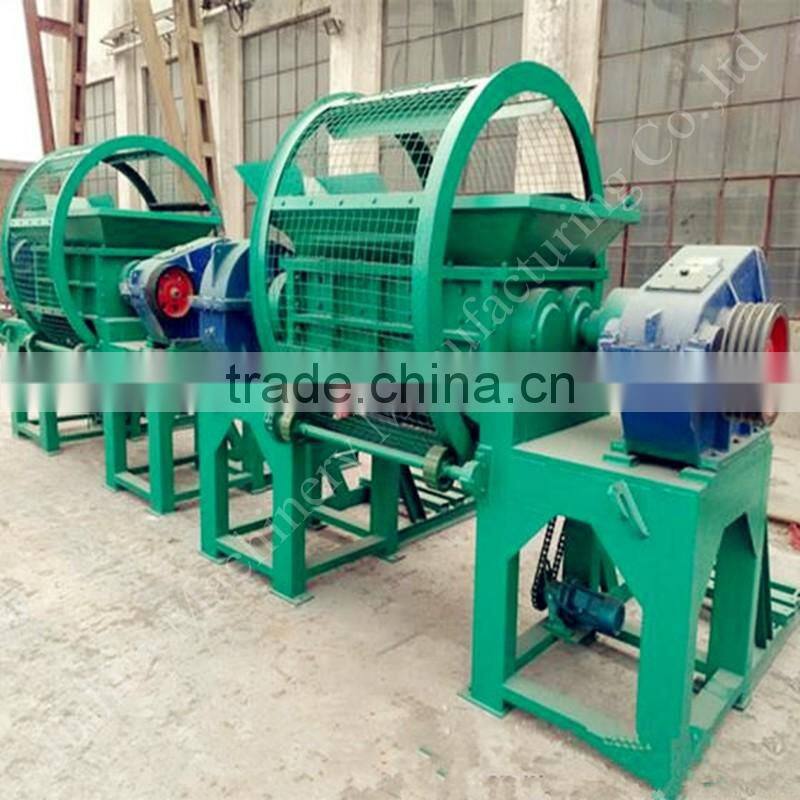

Tire shredder

Special use for car tire, no need to separate wire in tire, feeding directly. the screen around machine will keep rotate during shredding, small pieces will go through from screen, bigger pieces will go back to shredder and shredding again.

Tree stump crusher

Tree stump usually very big and hard, difficult to deal with, this tree stump crusher can use for 1.2m diameter stump, and cushing to small pieces, many power station can use the stump pieces to burn and generate electricity.

Wood chipper

Wood chipper, wood grinder, all use for handle wood and tree, the finaly product can be slice, pieces, power,

can use for macking fertilizer or animal's fodder.

More equipments please see the website of company.
