SJ-FM Single Screw Double Die Head Film Blowing Machine
- Ningbo Port China
- T/T Money Gram Credit Card
You May Like
-
RQL-700/800 PP/BOPP Side Sealing and Cutting Bag Making Machine
-
SJ Series Double Die Head Film Blowing Machine/double Mould Film Blowing Machine
-
SJ-FM Series Double Die Head pe Film/polythene Film/LDPE/HDPE Film Blowing Machine/blown Film Machine/extrusion Machine
-
Automatic High Speed Double Die Head Blown Film Machine for Normal Bags in Daily Life
-
SJ-FM Series Double Die Head/double Mould Film Blowing Machine/film Forming Machine/blown Film Machine
-
China Made Double Die Head Film Blown Machine
Product Details
| Condition | New | Application | Film | |
| Plastic Processed | PE | Blow Moulding Type | Extrusion Blow Moulding | |
| Automatic | Yes | Place of Origin | Zhejiang, China | |
| Brand Name | BONADA | Model Number | SJ55-FM600,SJ60-FM700,SJ65-FM900 | |
| Voltage | 380V, 3Phases, 50HZ or according to customer's requirement | Power(W) | 18.5-30KW | |
| Dimension(L*W*H) | 4000*3500*4000mm | Weight | 3800KGS | |
| Certification | CE certification | Warranty | One year guarantee | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

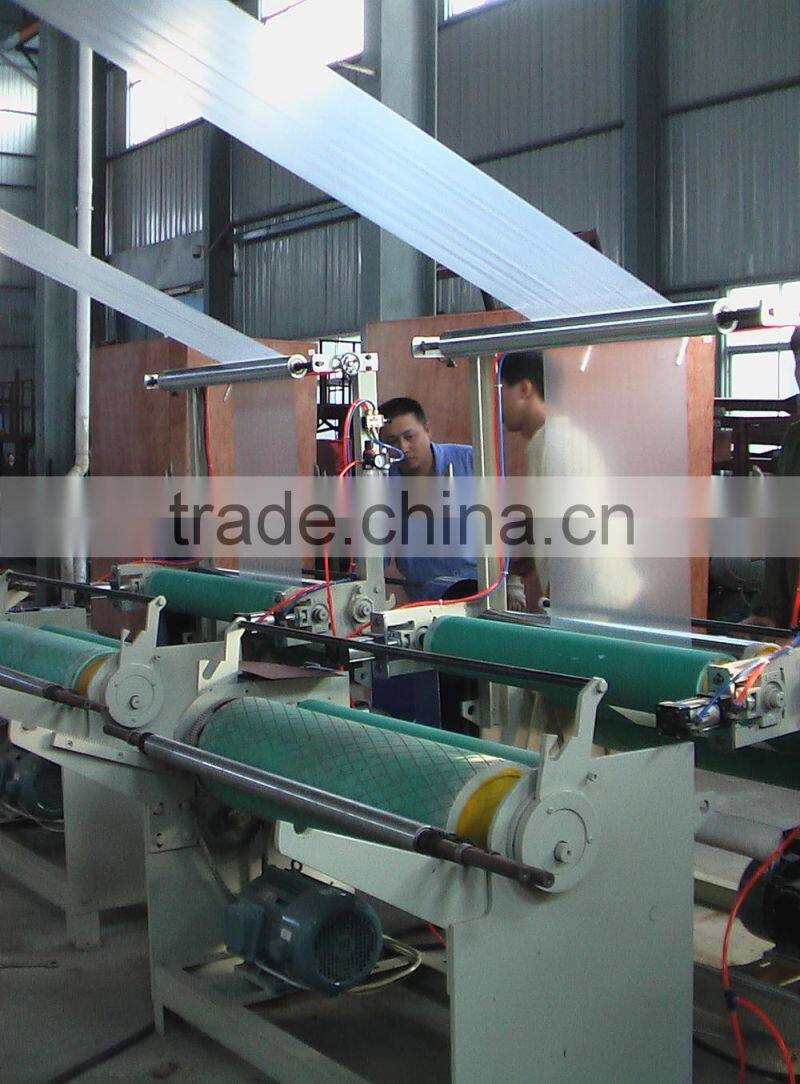

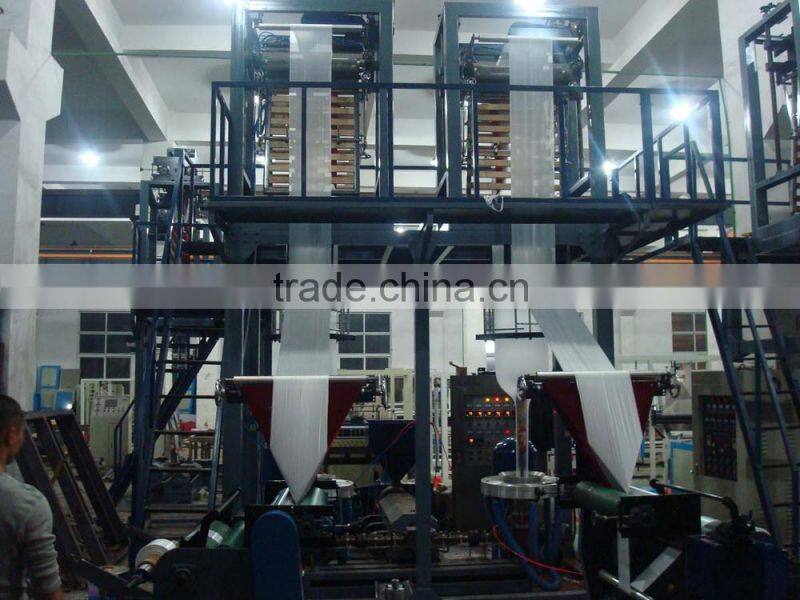

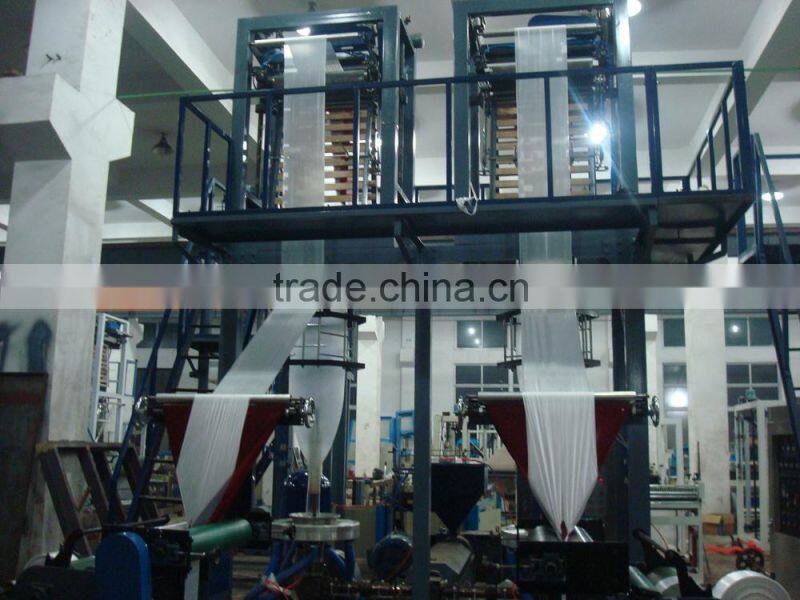

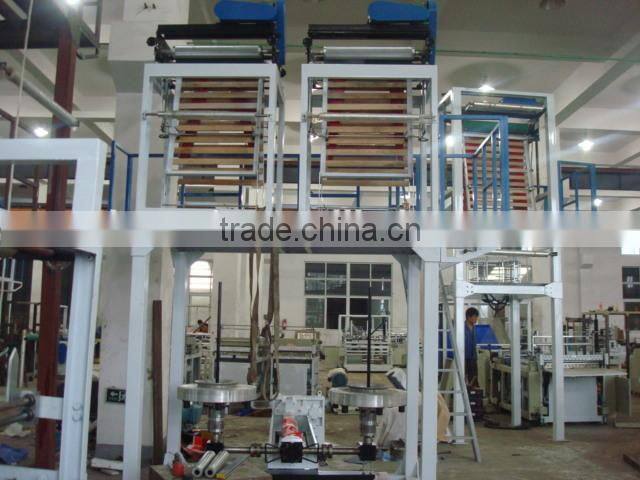

SJ-FM single screw double die head film blowing machine
Characteristics:
Its extruder, cylinder and screw rods are made of quality alloy steel that have been nitrized and processed in a precision way. The specially-designed screw is of sound quality in plasticizing, which helps increase the production capacity.
Appliable:
It is applied to blowing the plastic films like low density polythene (LDPE), high density polythene(HDPE) and linear low density polythene (LLDPE). It is widely applied to producing the packing bags for foodstuff, clothing, rubbish bag and vest ones.
Performance:
It adopts the device of two different plastic materials, which can blow different kinds of striped vest bags (shopping bag), it can get colorful bags without pringting , with such features as beautiful colors, average stripe, logical structure, advanced technology, even rewinding and high output.
Technical Parameters:
Model | SJ55-FM600 | SJ60-FM700 | SJ65-FM800 |
Diameter of screw | 55mm | 60mm | 65mm |
Screw Ratio(L/D) | 28:1 | 28:1 | 28:1 |
Screw Speed | 10-110r/min | 10-110r/min | 10-110r/min |
Max.output | 40kg/h | 55kg/h | 70kg/h |
Max.Folding Width of Film | 550mmx2 | 650mmx2 | 750mmx2 |
Single-sided Thickness of Film | 0.006-0.10mm | 0.006-0.10mm | 0.006-0.10mm |
Power of Main Motor | 15kw | 18.5kw | 22kw |
Total Power | 26kw | 30kw | 35kw |
Weight of Machine | 2800kg | 3200kg | 3800kg |
Overall Dimensions | 4800x2200x3000mm | 5000x2400x3200mm | 5200x2600x3400 |
